CNC Services Northwest Software and Products

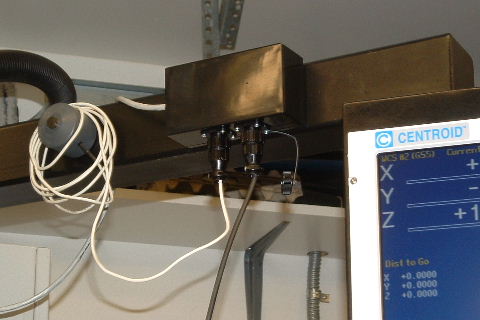

Probe and Tool Detector Extension and Splitter

Provides two probe sockets within easy reach near your console or on the front of your machine.

Leave your TT-1 tool detector plugged into one socket.

Plug your DP-4 or other probe into the second socket when needed, without having to walk around to the electrical cabinet on the back of the machine.

Probe Extension and Splitter: $240


Rotary axis conversion software

G Code reprocessor which converts XYZ part programs into cylindrical parts, by "wrapping" X or Y around a rotary fourth axis.

Click here for details!

Rotary Conversion software: $350


NWDNC

RS232 communications for DOS-based controls.

Receive job files (G codes) from any standard RS232 DNC sender: Cimco, Predator, Extreme DNC, Mastercam, Virtual Gibbs, etc.. No need for INTERLNK and INTERSVR, so no problems with Windows 9x and FAT32.

With two keystrokes, your Centroid control is ready to receive the job. When the complete job has been received, it is automatically loaded and ready to run: just measure your tool lengths, set part zero, and go.

NWDNC can also send the current job back out to the DNC station. This is important if you maintain proven jobs in a central storage location.

View NWDNC User's Manual

Make a Null Modem Cable

NWDNC software: $120


PIPETHRD

PIPETHRD is a tapered thread milling G code generator. With it you can mill pipe threads using a single point or tapered full-form cutter.

Click here for details!

PIPETHRD software: $120


External CYCLE START and FEED HOLD for M39 and M400 controls

Add large (22mm), easy to reach controls with in-cycle and feed hold indicator lights. Includes pushbutton controls installed in a small pendant box, which you can mount in any convenient location; modified PLC program; and on-site installation.

Auxiliary Emergency Stop button also available.

External CYCLE START and FEED HOLD: $250 + travel for installation
Add $50 for Auxiliary Emergency Stop


Centroid Software and Options


Update to CNC11 control software version 4.14 for Windows

(For MPU11-based controls with a PC sufficient for running Windows 10)

On-site update to version 4.14 from early Linux version, including new SSHD with Windows: $695 + travel On-site update to version 4.14 from Windows v3.04 or newer: $395 + travel


Update to control software version 2.72 for Linux

(For Linux-based controls with at least 256MB memory)

On-site update to version 2.72 from pre-2.60 version, including new flash card and reader: $495 + travel On-site update to version 2.72 from v2.60 or newer: $395 + travel


Update to control software version 2.38 for Linux

(For Linux-based controls with less than 256MB memory)

On-site update to version 2.38: $395 + travel


Update to control software version 8.23 for DOS

(For DOS-based controls with at least 16MB memory)

On-site update to version 8.23: $395 + travel


Probing

Automatically locate part zeros using seven different cycles:

Also locate and measure features, or simply use the probe as an automatic electronic edge finder.

DP-4 package includes Centroid DP-4 probe for all surfaces, two ruby styli (1/4" and 1/8"), and software cycles.

DP-4 Probing Package: $1,590


Digitizing

Measure and duplicate 3D surfaces, on any material, using three digitizing patterns.

Includes Centroid DP-4 all-surface probe, two ruby styli, calibration ring, digitizing software cycles, and probing cycles (see above).

Click here for details!

DP-4 Digitizing Package: $4,940


Other Centroid Options

Click here for a summary of all Centroid software options and packages.


CNC Services Northwest Home

Last updated 16-Nov-2016 MBL
