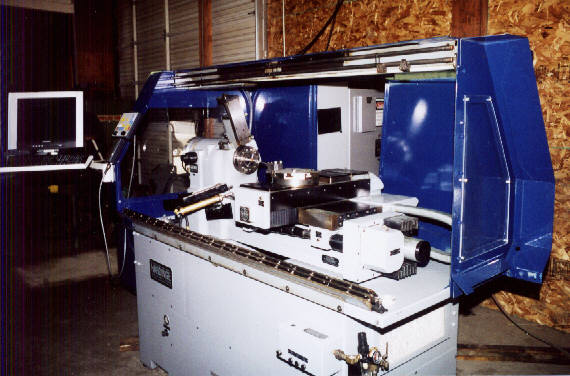

This is a Hardinge CHNC4 lathe from mid-1980s, retrofitted with Centroid T39
control by Advanced Machinery Resources in the summer of 2002. I contracted
to do the control design, PLC programming, and much of the cabinet wiring.
Accessories include:

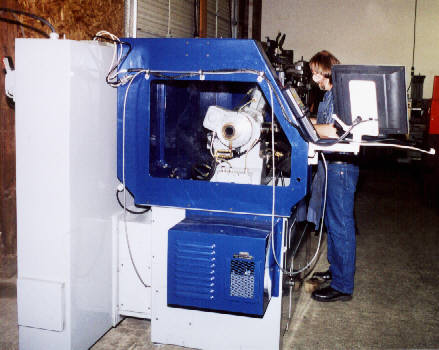

The keyboard and 15" LCD display are on a convenient articulated support arm near the headstock.
All control electronics are installed in the original electrical cabinet
on the back of the machine.

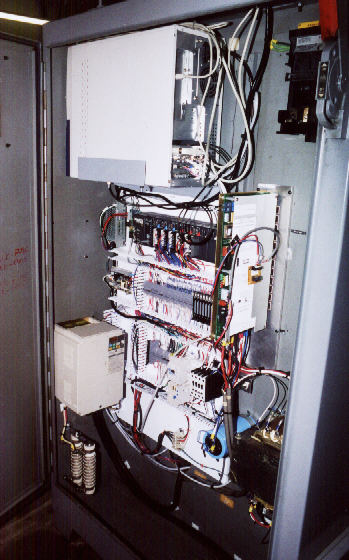

Control cabinet: PC is on upper left; Koyo PLC below; Centroid DC servo drive
to right; Omron 10HP inverter on bottom left.

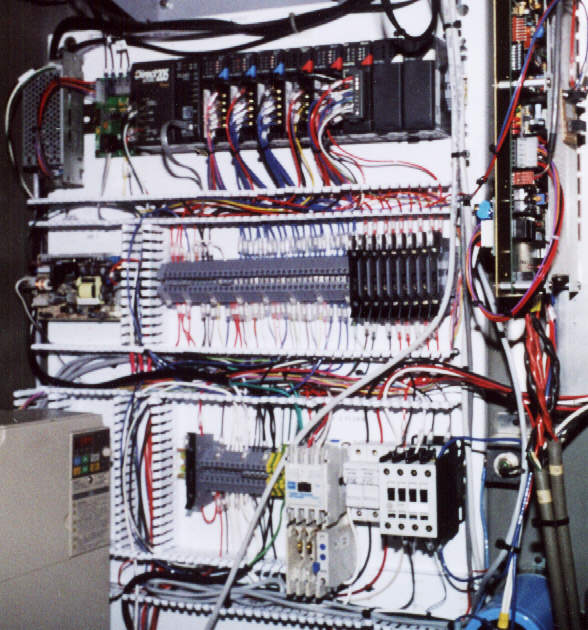

Electrical cabinet detail.
With a new generation of hardware and PLC software from Centroid, we have been able to move away from the Koyo PLC unit to a simpler installation using Centroid's combined PLC and DC servo drive.
CHNC4 retrofit with newer cabinet layout
